We support your data acquisition objectives.

Reducing risk, cost, and emissions.

Company Profile

Global QA/QC Services

We are a technical consulting firm founded in 2003, that provides wireline and M/LWD QA/QC services on six continents, with a portfolio of proprietary technologies including the Gaia Cable Protection System [GCPS®]

Our mission is to support safe and efficient formation evaluation operations, reducing risk and cost for our clients.

Our Clients

Proud winner of 2 King's Awards for Enterprise: Innovation in 2023

Our Services

Gaia Earth Group deploys sophisticated systems and proprietary technologies to maximize operational efficiency and minimize risks and costs.

Wireline & LWD QA/QC

Comprehensive quality assurance for wireline and M/LWD operations.

Learn More

Gaia Cable Protection System

Prevent Cable Sticking and Keyseating

Learn More

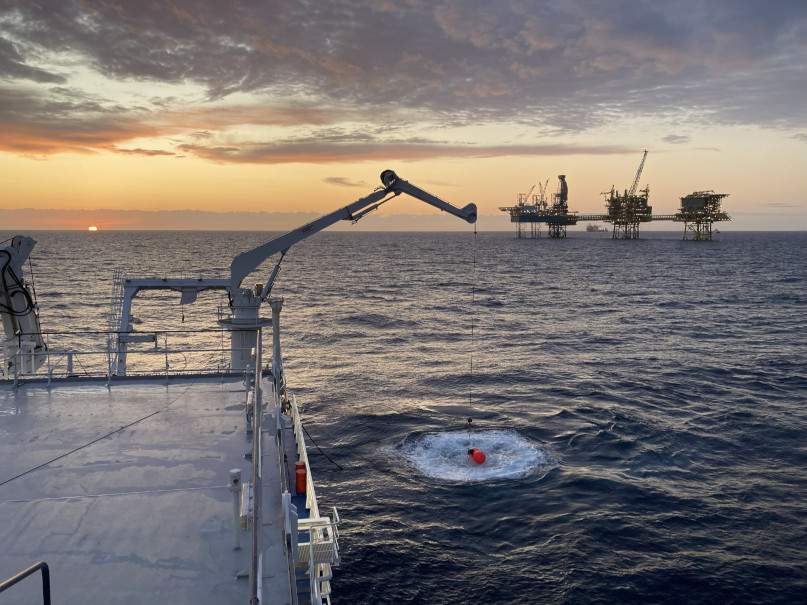

Borehole Seismic

Support and QA/QC. From planning, to data processing and delivery

Learn More

Wireline Sticking Forensics

Post-incident analysis and independent expert review for complex fishing and sticking events.

Learn More

Research & Development

In-house development of next-generation formation evaluation sensors and software solutions.

Learn More

Technologies

Proprietary sensors pushing the boundaries of subsurface intelligence.

Learn More

Wireline & LWD
QA/QC Services

Gaia Earth Group provides premier Quality Assurance and Quality Control (QA/QC) for formation evaluation data acquisition. Our objective is to minimize Non-Productive Time (NPT) and ensure the delivery of high-fidelity data for accurate reservoir characterization.

Remy Voog

Business Development - Eastern Hemisphere

Comprehensive Service Portfolio

TBE

Tenders,
Bids & Evaluations

Review of tender documents to ensure technical compliance.

TA

Technical Audit

Physical inspection of logging contractor facilities and tools.

TPP

Technical Planning & Preparation

Pre-job risk analysis, tool planning, LWOP and loadout QC.

WQC

Wellsite QC

Real-time supervision of planning and operations at the wellsite.

POS

Post Operations Support

Final data processing and comprehensive service quality reporting.

TPP

Technical Planning & Preparation

A well executed operation begins with a well planned operation.

Early involvement of Gaia consultants will help deliver an acquisition strategy that prioritises clients' objectives, targets technical limits, and reduces operational risk. Especially for critical wells (HPHT), our process corrected deficiencies in readiness.

Acquisition Planning

Design acquisition that ensures well objectives are met.
Optimised run combinations that can sometimes save a run-in-hole.
Advanced tension modelling for challenging wells.

Log Well on Paper (LWOP)

Review data acquisition programmes and failure contingencies.
Incorporate lessons learned from our global database.

Equipment Loadout Inspection

Review equipment inventory to ensure compliance with the acquisition programme.
In-depth review of maintenance status, including field modification records, heat qualification, failure history, certification and calibrations.
Quality Control of System Integration Testing (SIT) to ensure equipment functionality is verified.
Real-time reporting on preparation through the Gaia Client Portal.

Deliverables: Data Acquisition Programme, Detailed TPP Report.

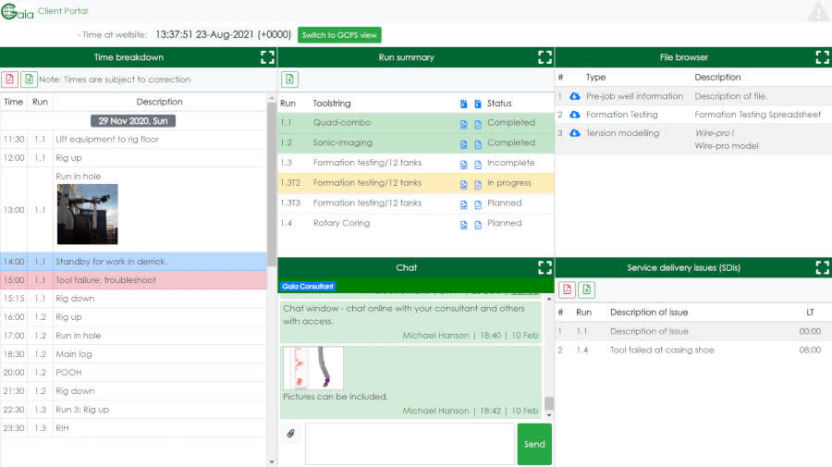

Gaia Client Portal

Allows a realtime at-a-glance view of wireline operations.

View and download time breakdowns, as they are updated.
Lost time items are clearly highlighted.
View and download run summaries and tool diagrams.
Download information in PDF or Excel format.
File browser, to access data such as Wire-pro models or formation test data.
Chat with your Gaia consultant and other users.

Gaia Cable Protection System

Prevent Cable Sticking and Keyseating

Engineering solutions to tackle the most challenging downhole environments.

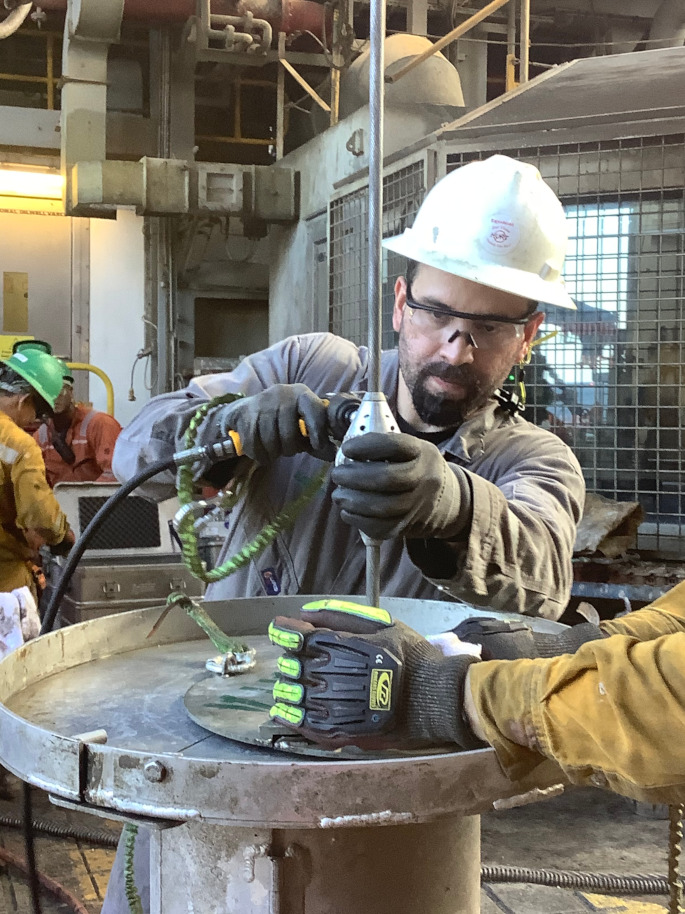

Xavier Perez

Operations Specialist / Business Development

Why do wireline cables get stuck?

Keyseating

In zones of high cable thrust where the cable creates its own channel in the formation, increasing mechanical friction.

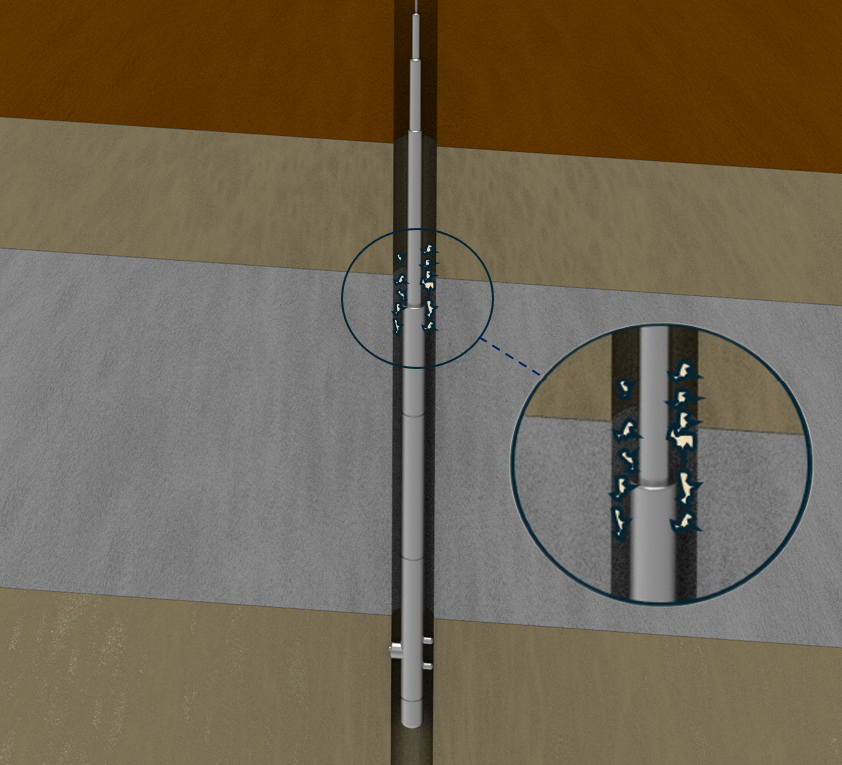

Differential Sticking

Occurs in permeable zones where the pressure differential forces the cable against the borehole wall.

Critical Outcomes

Pipe-conveyed logs
Strip-over fishing
Lost data
Broken cables

What are Wireline Standoffs?

A unique patented technology that prevents cable sticking by reducing the cable contact with the borehole in key zones identified by our advanced modelling software (Wire-pro®).

Over 23,000 Wireline Standoffs have been run in hole to date.

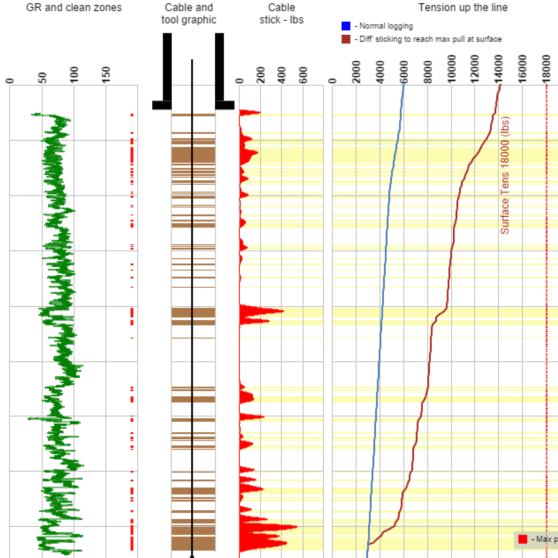

Wire-pro® modelling

Bespoke tension modelling package

Superior to other models on the market.

Focus on open hole sticking potential (tool sticking and cable sticking).

Integration of petrophysical data, lithology and pore pressures.

wireline standoffs

Prevent cable sticking and keyseating

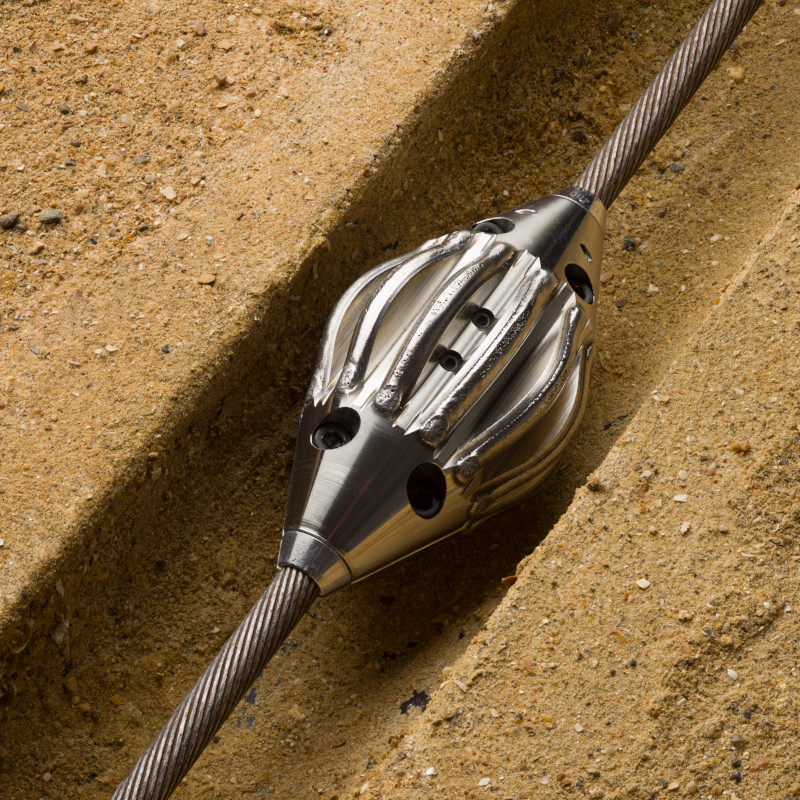

Wireline standoffs (WLSO®) are precision mechanical clamps that attach to logging cable to suspend it above sticky zones.

Wireline standoffs are arranged in arrays to cover the risk zones in the well. The number of standoffs is dependent on the number and size of the risk zones.

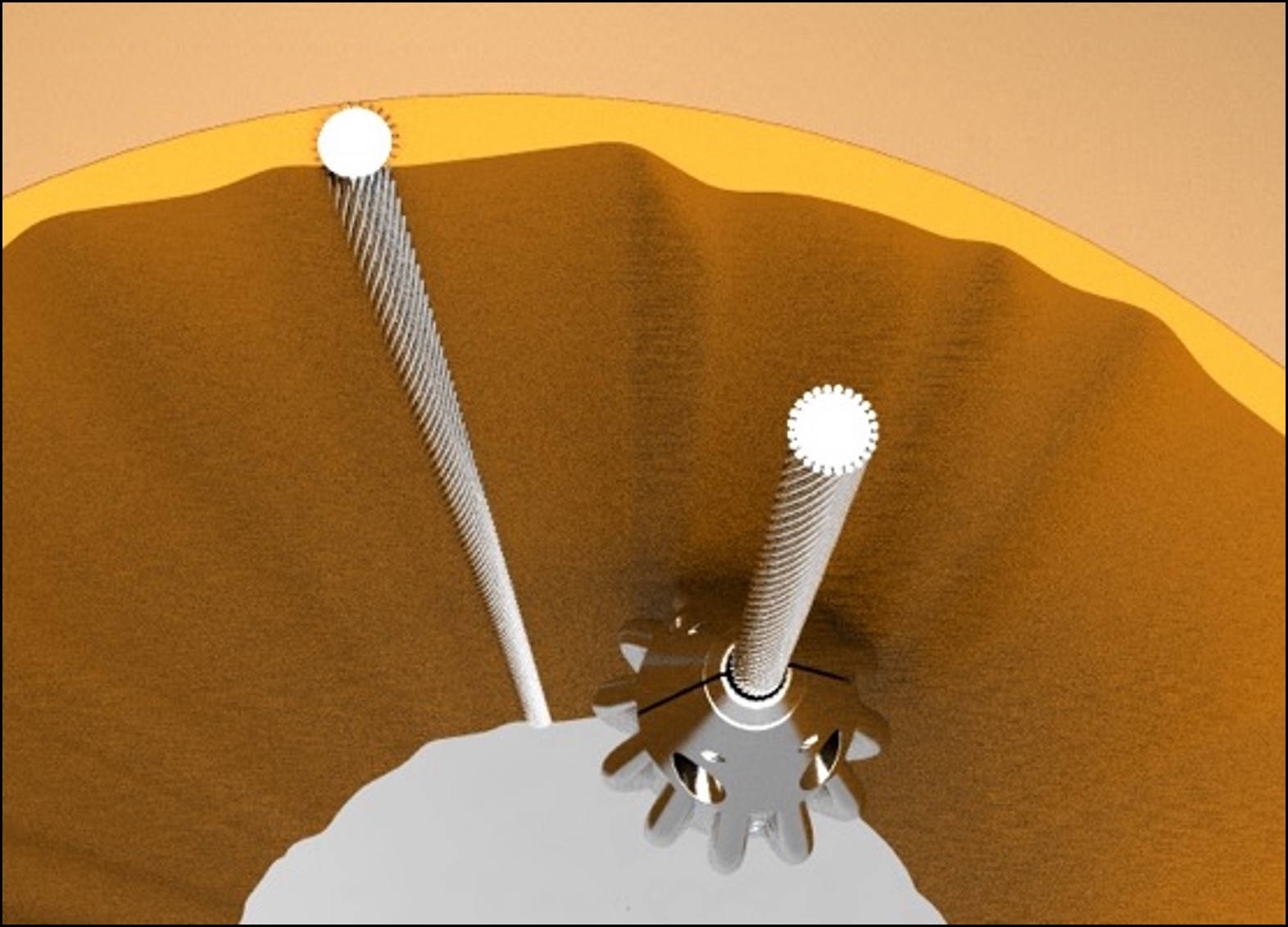

Wireline standoffs reduce cable contact with the formation by >99%. They also improve tension transmission to the cablehead in case of a stuck tool.

The average number of wireline standoffs deployed in one run is 33. The average spacing is 55ft (~17m).

Wireline standoffs fit all cables. Precision cable inserts fit every logging cable in the industry.

Safe & Efficient

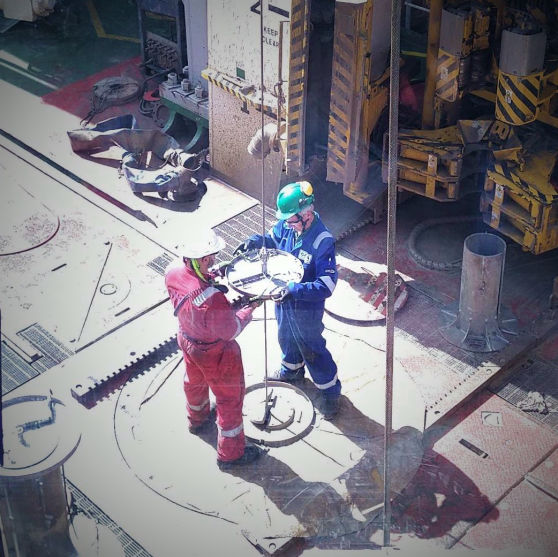

It takes under 1 minute to install a WLSO® with our latest express kit.

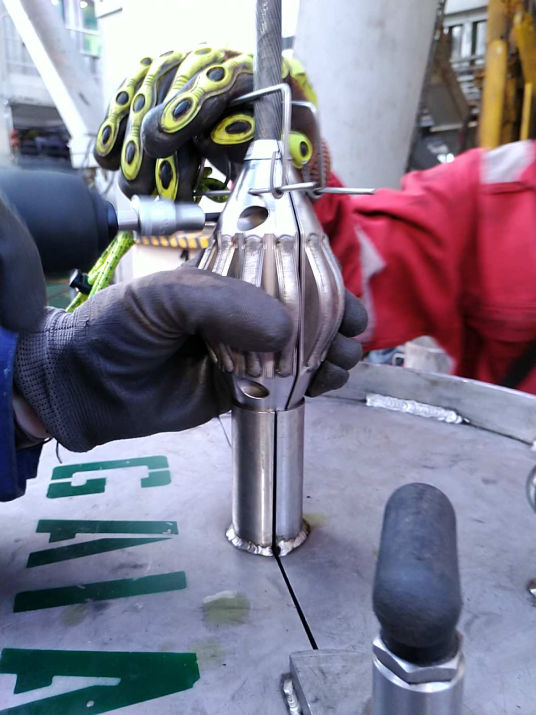

Lanyards are attached to each half of the standoff to prevent dropped objects. All hand tools are tied off.

Once the job is safely completed, wireline standoffs are removed from the cable. Depth alarms are set to ensure that the winch operator stops at the correct depths in order to remove them.

Proven Track Record

GCPS® has been used extensively, with hundreds of hole sections modelled with Wire-pro and thousands of WLSO® run worldwide.

Wireline standoffs remain firmly attached to the wireline cable and have never been lost in hole.

Contingency Planning

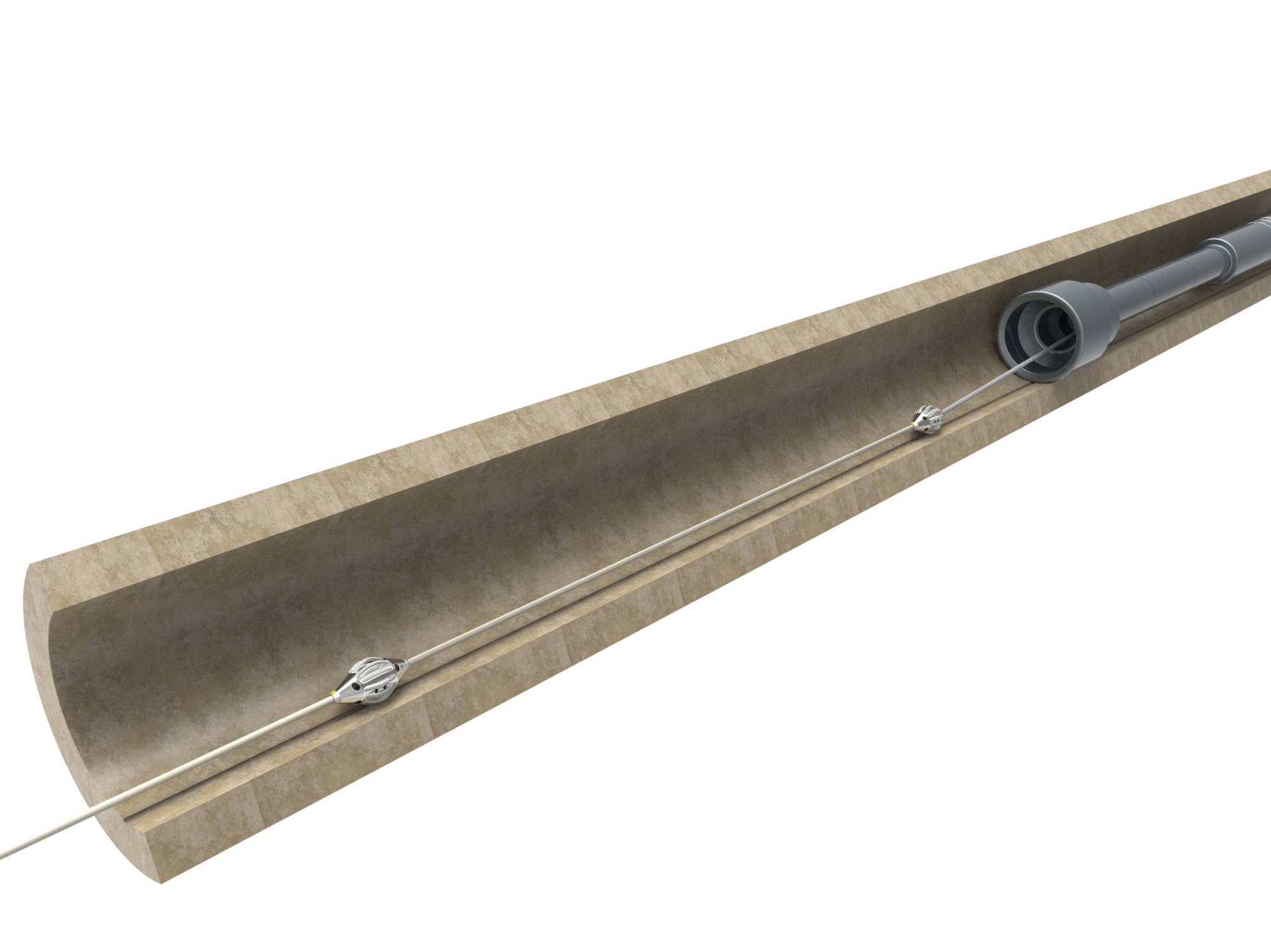

Wireline standoffs (WLSO®) are designed with strip-over (or cut-and-thread) fishing in mind.

Prior to every job, drill pipe sizes are checked to ensure that fishing is feasible.

Strip-over fishing has been successfully performed over wireline standoffs.

Gaia Specialist

Having an experienced Gaia Conveyance Specialist at the wellsite is key to the success of GCPS®.

The Gaia Conveyance Specialist ensures the operation is performed safely and efficiently, ensures correct configuration and placement of wireline standoffs, and can advise on wireline conveyance and contingency planning.

Gaia Specialists are also trained as QA/QC specialists. Having 2 specialists at the wellsite gives 24 hour cover for both QA/QC and GCPS®.

Gaia Technologies

Proprietary hardware and software solutions.

WLSO®

Wireline Standoff

Wireline Standoff System: Patented standoff technology to prevent cable sticking in open hole.

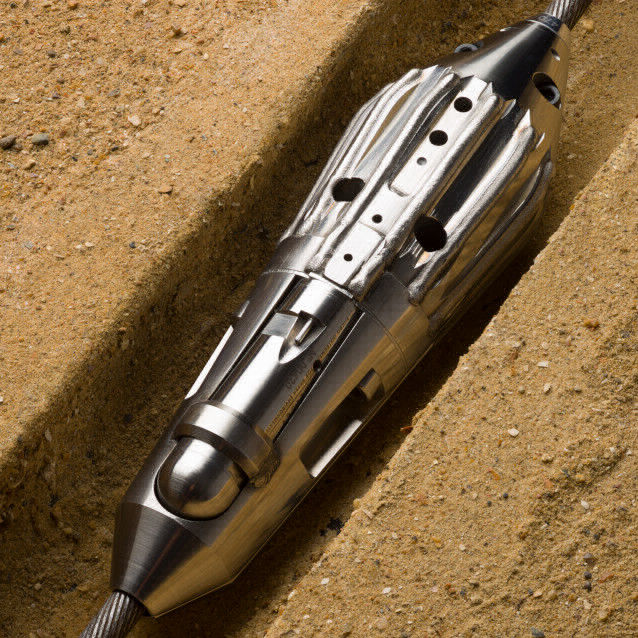

WXSO®

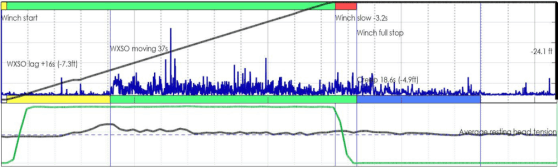

Wireline Smart Standoff

WXSO is the result of Gaia’s ongoing R&D into wellbore and cable dynamics (drag, torque, cable movement and creep) and future conveyance technologies.\nIt can be considered a “black-box” for a logging run.

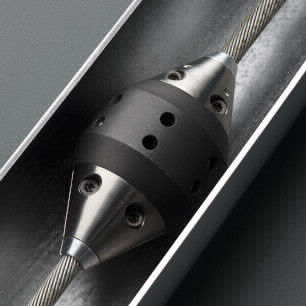

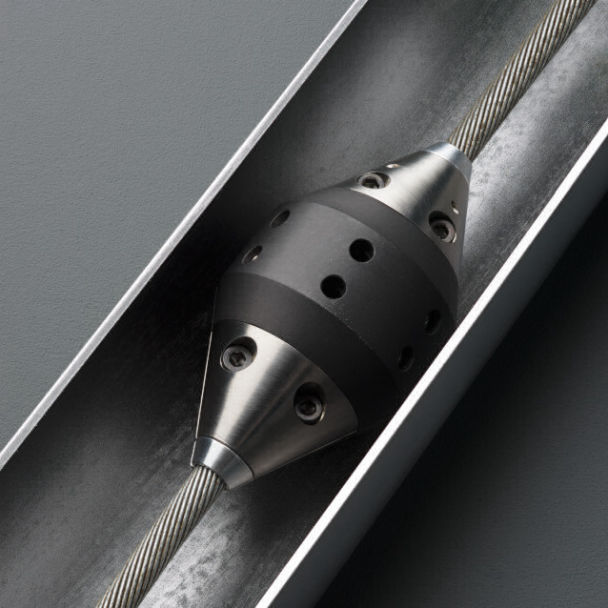

WCSO®

Wireline Cased Hole Standoff

Minimize wireline casing wear.
Reduce logging tensions.
Improve tension transmission.
Increase pull on cable head.
Increase effective cable rating.

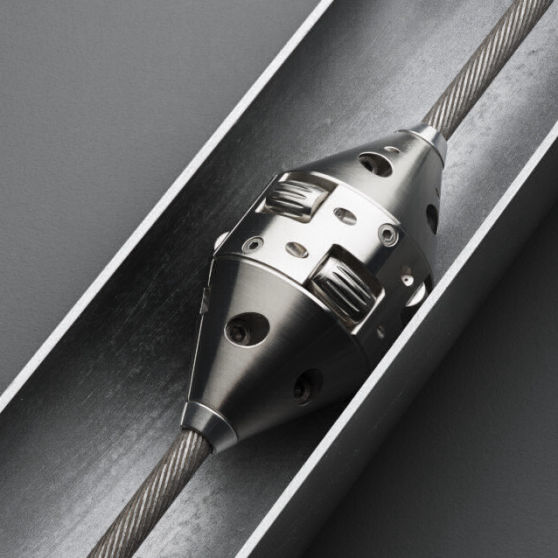

WCRO®

Wireline Roller Standoff

Minimize cable drag.
Aid wireline descent >70º.
Extend tractor reach.
Reduce logging tension.
Increase pull on cable head.
Increase effective cable rating.

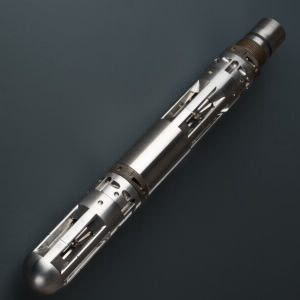

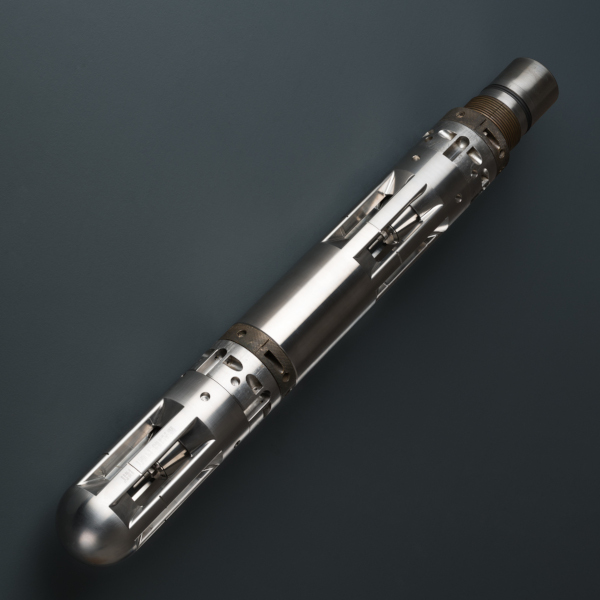

TNOS™

Temperature Bottom Nose

Continuous temperature log.
Attaches to bottom of wireline tool.
Deepest possible temperature reading.
Rated to 175°C (347°F).
Incorporates a 4-wire platinum RTD.
Calibrated to 180°C in a UKAS calibration laboratory (ISO/IEC17025:2017 & ITS-90).

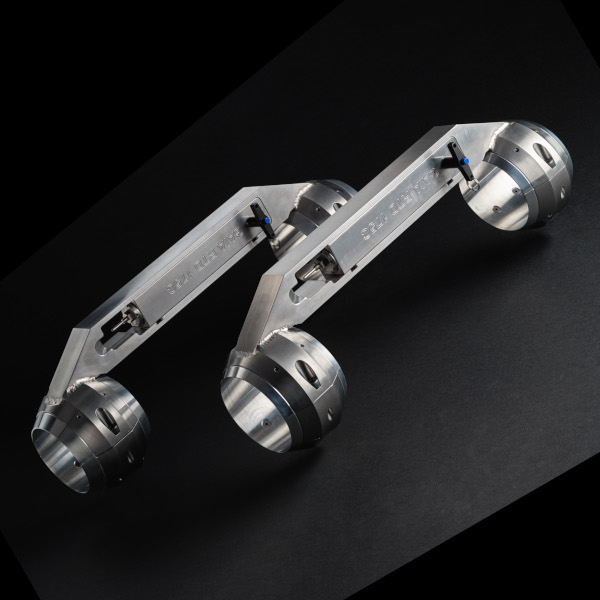

FTSO

Fin Temperature Standoff

Continuous temperature log.
Attaches to the wireline tool housing.
Rated to 175°C (347°F).
Incorporates a 4-wire platinum RTD.
Calibrated to 180°C in a UKAS calibration laboratory (ISO/IEC17025:2017 & ITS-90).

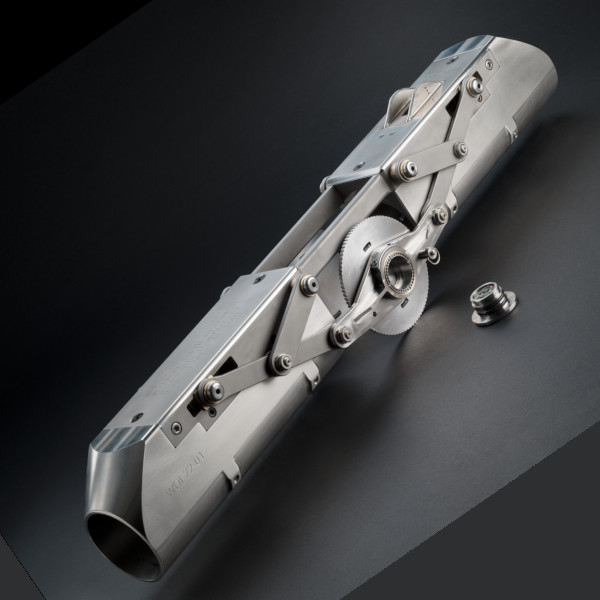

WDI™

Wellbore Depth Instrument

The world's first downhole odometer.
Records the cumulative distance moved by a tool, as well as speed, direction and relative bearing.
Independent of cable tension, speed and stretch and other error-inducing transients.
Provides post-run depth validation for any service (open or cased hole) where tool positioning is critical for data QC and interpretation, such as formation pressure testing or rotary coring.
Direct measurement of cable creep.
Designed for 8.5" holes and larger.
Fits on 3 5/8" tool body.

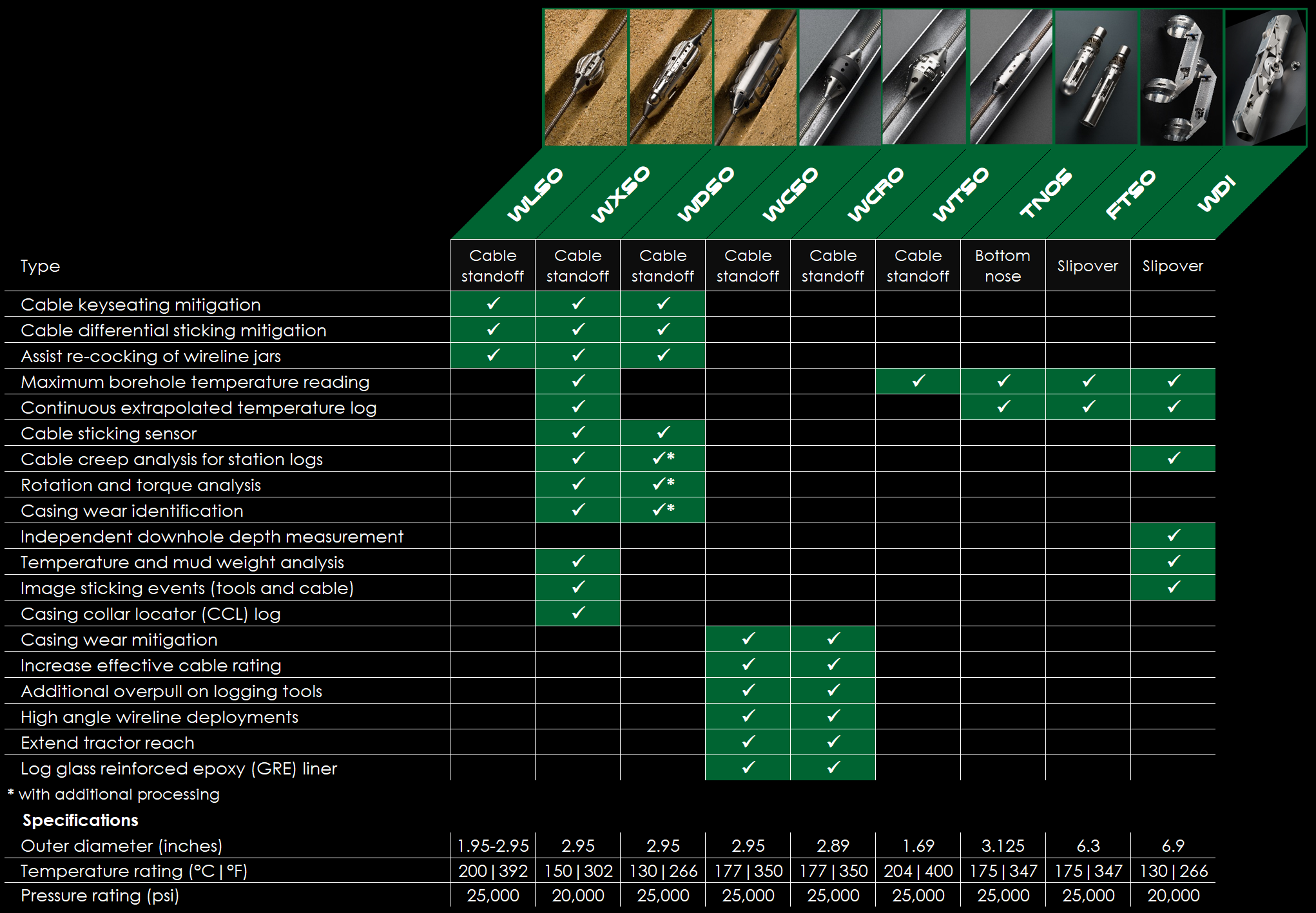

Technical Specifications

View full specification matrix.

Connect with Gaia

Our global team is ready to assist you. Visit us on LinkedIn for details of upcoming events.

Visit LinkedIn Page

Email Inquiries

General: info@gaiaearthgroup.com

Operations: ops@gaiaearthgroup.com

Global Support

Ops Hotline: +44 1343 831 230

Europe/Africa

North America

Latin America

Middle East

Asia Pacific

South East Asia

Authorized Agent - Malaysia

Locations

United Kingdom

1A, Park House Business Centre
South Street, Elgin IV30 1JB

USA (Local Agent)

1210 Veterans Memorial Blvd.
Kenner, LA 70062, USA

Thailand

P.O. Box 1, 413 Moo 5
Somdet, Kalasin 46150

Gaia Earth Group

Company Profile

Global QA/QC Services

Our Clients

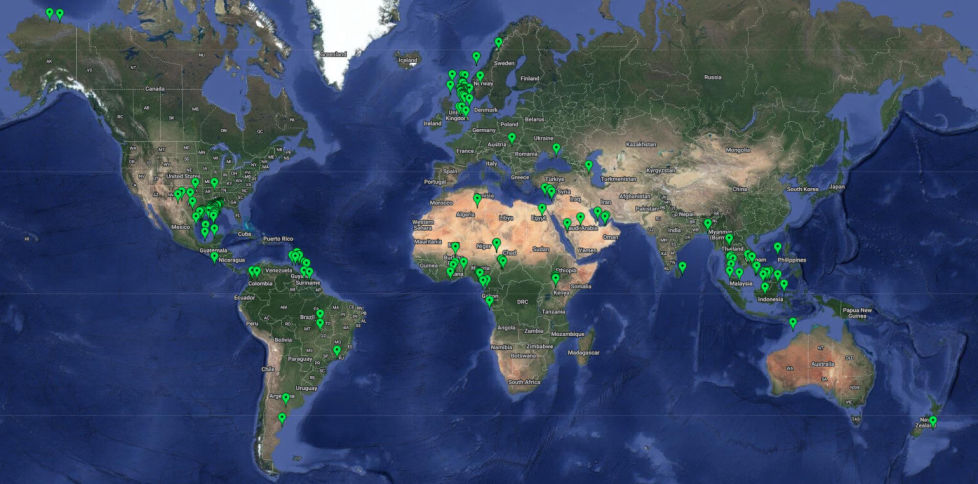

6 Continents

QC operations

Experience

Join Us

Our Services

Wireline & LWD QA/QC

Gaia Cable Protection System

Prevent Cable Sticking and Keyseating

Borehole Seismic

Wireline Sticking Forensics

Research & Development

Technologies

Wireline & LWD QA/QC Services

Comprehensive Service Portfolio

TBE

Tenders, Bids & Evaluations

TA

Technical Audit

TPP

Technical Planning & Preparation

WQC

Wellsite QC

POS

Post Operations Support

TBE

TA

TPP

WQC

POS

Gaia Client Portal

Gaia Cable Protection System

Why do wireline cables get stuck?

Keyseating

Differential Sticking

Critical Outcomes

What are Wireline Standoffs?

Wire-pro® modelling

Bespoke tension modelling package

wireline standoffs

Prevent cable sticking and keyseating

Safe & Efficient

Proven Track Record

Contingency Planning

Gaia Specialist

Borehole Seismic Support and QA/QC

Project Management

Navigation

MMO & PAM

Field Data Processing

Our Personnel

Wireline StickingForensics

Assessment

Analysis & Interpretation

Reporting

Research & Development

Our SPE Papers

Gaia Technologies

WLSO®

Wireline Standoff

WXSO®

Wireline Smart Standoff

WCSO®

Wireline Cased Hole Standoff

WCRO®

Wireline Roller Standoff

TNOS™

Temperature Bottom Nose

FTSO

Fin Temperature Standoff

WDI™

Wellbore Depth Instrument

Technical Specifications

WXSO®: The Intelligent Standoff

Key Features

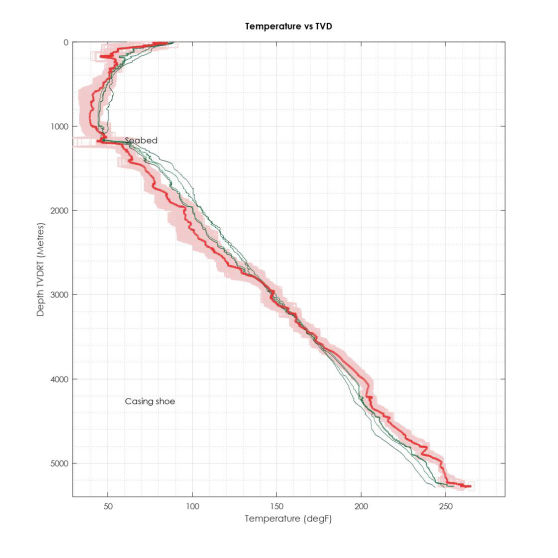

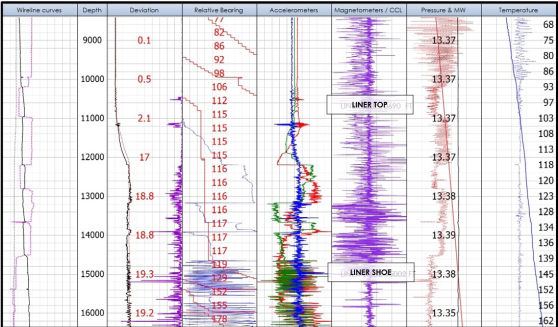

Continuous Extrapolated Temperature Log (CETL™)
